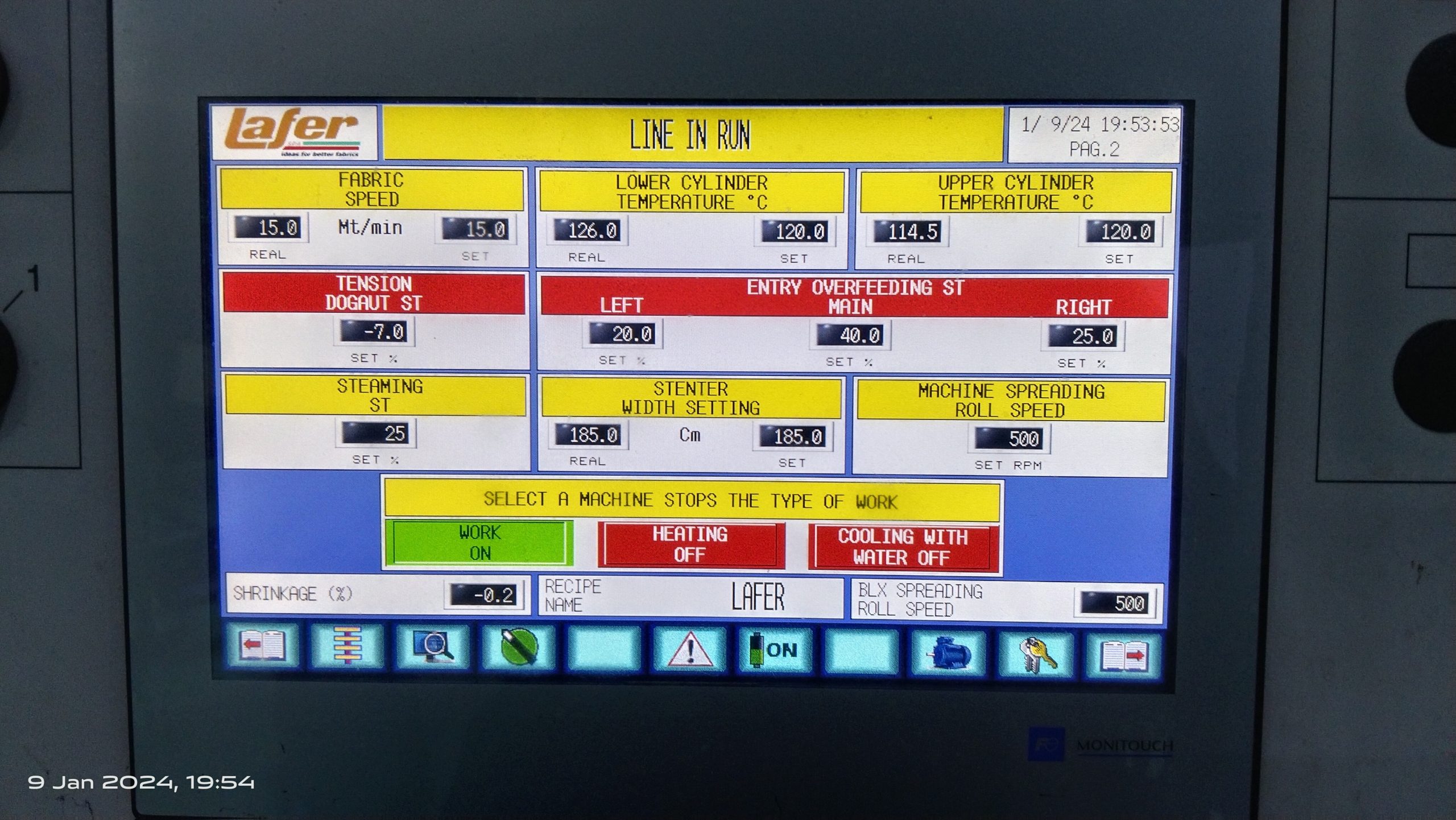

Description
Screen size: 10.2” widescreen
Display device: TFT color
Resolution: 800 × 480 dots
Colors :65,536 colors
Backlight: LED
Touch screen: Analog registive
Certifications: CE / KC / UL / cUL
User Memory: FROM 26 MB
SRAM: 128 KB
External interface specifications: COM1 :D-Sub 9 pin (female)
RS-422/RS-485(4-wire/2-wire)
Data length: 7,8 bits Parity: even,odd,none Stop bit: 1,2 bits
Baudrate:4800,9600,19200,38400,57600,76800,115200,187500*1 bps
COM2/COM3
D-Sub 9 pin (male) COM2:RS-232C COM3: RS-422/RS-485(2-wire)
Data length: 7,8 bits Parity: even,odd,none Stop bit: 1,2 bits
Baud rate: 4800,9600,19200,38400,57600,76800,115200 bps
LAN RJ-45 1 ch
USB-A 1 ch
USB mini-B 1 ch
Power supply Permissible range of voltage 24 V DC ± 10 %
Power consumption
(max. rating): 12W or less
Physical environment Ambient temperature 0 to 50°C*2
Ambient humidity 85% RH or lower(non-condensing)*2
Contamination level 2
Operation altitude 2,000 m or less
Atmosphere Not to be exposed to corrosive gas, or conductive dust
Storage ambient temperature -10 to 60°C*2
Storage ambient humidity 85% RH or lower(non-condensing)*2
Installation conditions Protective structure Panel front IP65 equivalent (when using waterproof gasket*3), IP40 equivalent (when not using waterproof gasket*3)
Rear case IP20 equivalent
Dimensions
W × H × D 266.8 × 206.8 × 38.0 mm
Panel cutout 257.0 × 199.0 (+0.5/-0)mm
Case color Black
*1 187500 bps is only relevant to Siemens AG MPI/PPI communications.
*2 Use at a wet-bulb temperature of 39°C or lower to avoid damage.
*3 This is an optional item.
